HZ-6: The Smallest Centrifugal Barrel Finisher in the HZ-Series
- Home
- /
- Equipment
- /
- Centrifugal Barrel Finishing Machines
- /
- HZ-6 Centrifugal Barrel Finisher
The Most Accessible Entry Point to Centrifugal Barrel Finishing for Dental Labs, Medical Devices, and Jewelry

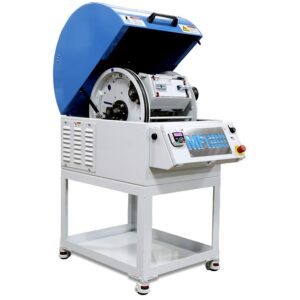

The HZ-6 is the smallest centrifugal barrel finisher Mass Finishing makes—and the most affordable way to bring high-energy isotropic finishing into a dental lab, medical device cleanroom, or jewelry workshop. It occupies less than 6 square feet of floor space, plugs into a standard 120V wall outlet, and rolls between workstations on locking caster wheels. If you’ve been hand-polishing small parts and want to test whether centrifugal barrel finishing can deliver the results you need, the HZ-6 is designed to answer that question without the commitment of a larger machine.
Despite its compact size, the HZ-6 generates serious finishing force. Its 1 HP motor drives two barrel positions at speeds up to 250 RPM—producing centrifugal forces upward of 12Gs. That’s enough to deburr, edge-radius, and polish dental crowns, medical implant components, jewelry pieces, and Swiss-machined parts to the same isotropic quality that the larger HZ-Series models produce. The difference is scale: two barrels instead of four, which means smaller batch sizes but the same finish quality per part.
The HZ-6 shares the same barrel sizes as the HZ-12 (full-size 8.375″ x 5″ and half-size 3.625″ x 5″ latched-end barrels), so processes developed on the HZ-6 transfer directly to the HZ-12 when you’re ready to scale. Many manufacturers start with the HZ-6 to validate their finishing process, then move to the HZ-12 to double their throughput.
Machine Type: Compact
Max Part Size: 8″ L x 4.5″ D
Full Size Barrel Dimensions: 8.375″ L x 5″ D
Half Size Barrel Dimensions: 3.625″ L x 5″ D
Popular Industries: Medical, Dental, Jewelry, and Swiss-Machined Parts
What the HZ-6 Does Best: Small-Batch Precision Finishing
The HZ-6 is built for labs and workshops that process small batches of high-value parts—where every piece needs to meet the same standard, but daily volumes don’t justify a four-barrel machine. Its two-barrel design is deliberate: it reduces the machine’s footprint, weight, and cost while delivering the same centrifugal barrel finishing physics as the larger models.
Each barrel position holds one full-size latched-end barrel or two half-size barrels (4 half-size barrels total). At 250 RPM, the HZ-6 generates forces exceeding 12Gs—the highest RPM of any machine in the compact class. This means faster material removal rates per minute of cycle time than many larger, slower machines. For a dental lab finishing a batch of crowns or a medical device manufacturer processing a tray of implant screws, the HZ-6 completes cycles in minutes.

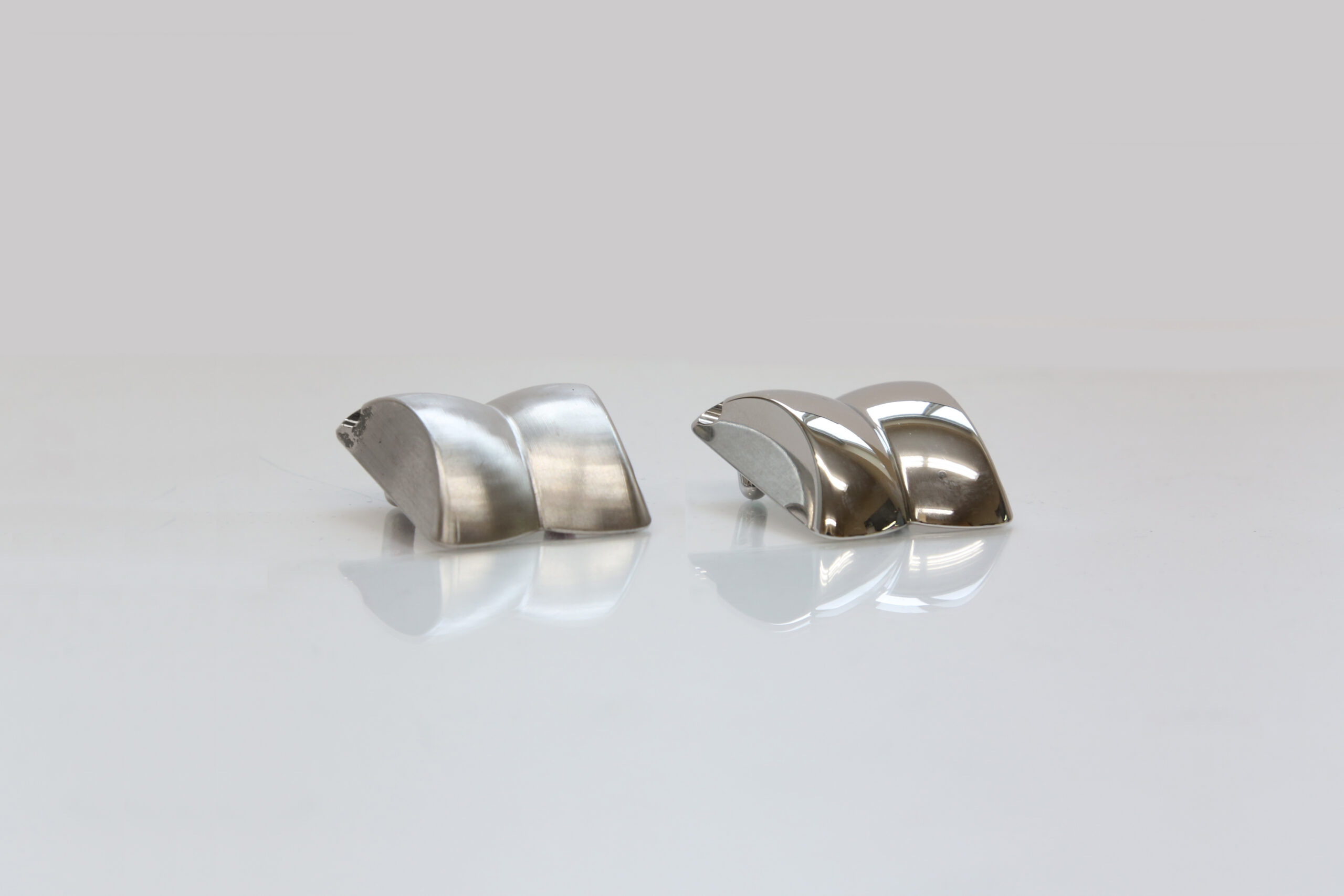

The digital RPM and time selector gives precise control over finishing intensity. Run at lower speeds for delicate gold and silver jewelry polishing. Increase speed for aggressive deburring on stainless steel or cobalt-chrome dental frameworks. The same machine handles both extremes—you adjust the parameters, not the equipment.
Why Dental Labs and Small Manufacturers Start With the HZ-6

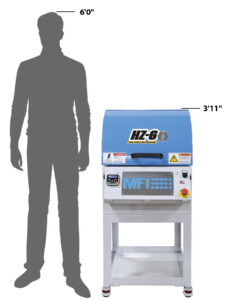

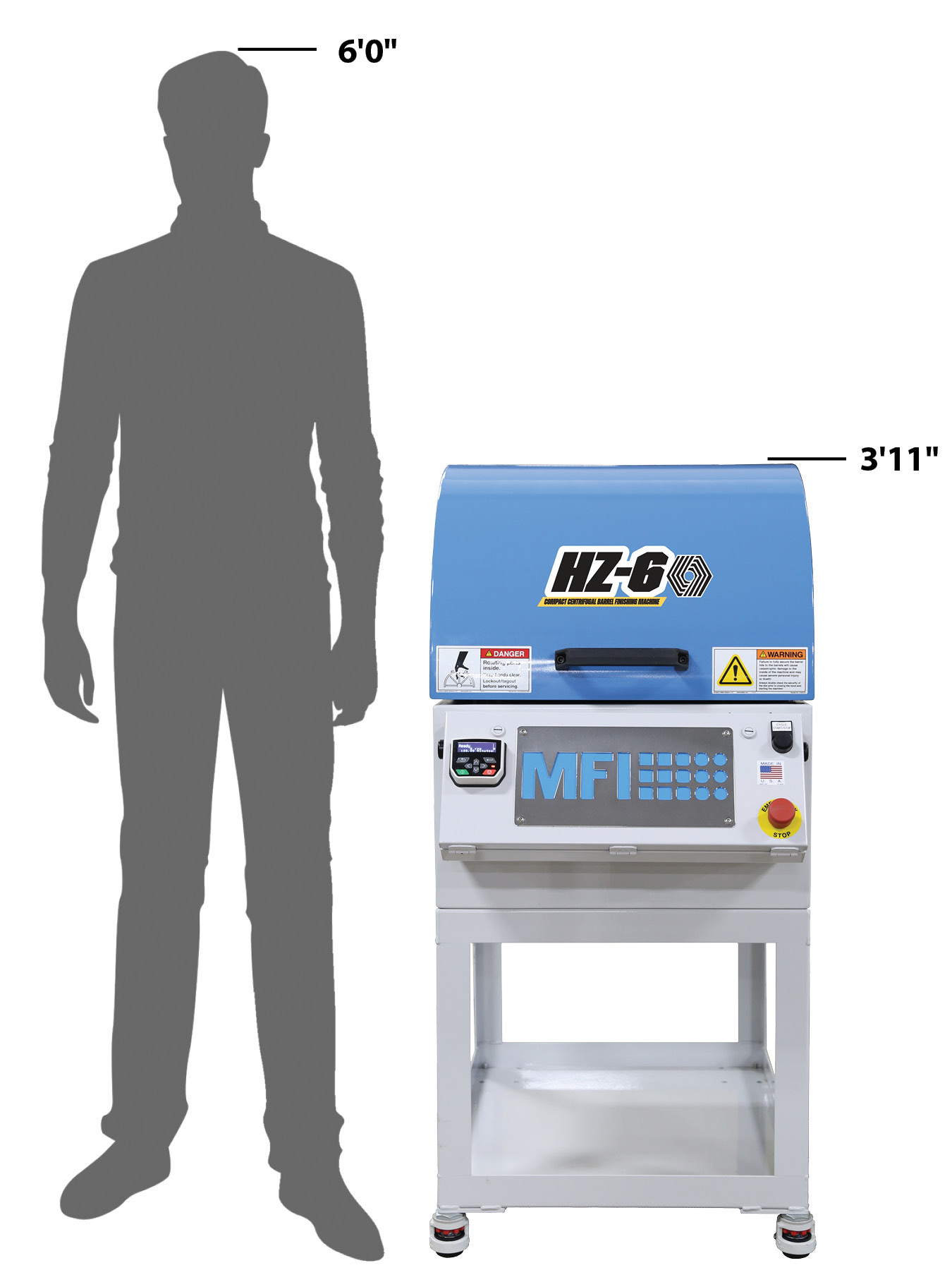

Under 6 square feet of floor space
The HZ-6 is the smallest centrifugal barrel finisher in the HZ-Series. It fits on a dental lab bench, slides into a medical device cleanroom corner, or tucks beside a jewelry polishing station. Locking caster wheels let you reposition it between workstations and lock it in place during operation.

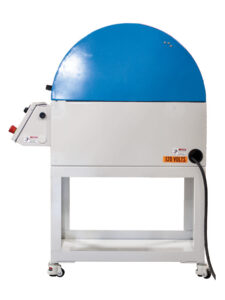

120V standard outlet power
No three-phase electrical, no special wiring, no electrician required. The HZ-6 plugs into the same outlet as your other lab equipment. For dental offices and small medical device labs, this eliminates the biggest installation barrier to adopting centrifugal barrel finishing.
250 RPM—the fastest compact machine
The HZ-6 reaches higher rotational speeds than the HZ-12, generating forces exceeding 12Gs. Faster RPM means shorter cycle times for the same finish quality. A dental crown that takes 5 minutes in the HZ-12 may finish in less time in the HZ-6—fewer barrels, but faster rotation.
Same barrels as the HZ-12
The HZ-6 uses identical barrel sizes to the HZ-12 (full-size and half-size latched-end). Processes, media recipes, and cycle parameters developed on the HZ-6 transfer directly to the HZ-12 when you scale up. No re-validation, no recipe changes.
Digital RPM and time controls
Unlike analog-only controls on some entry-level tumblers, the HZ-6’s digital selector lets you set precise RPM and cycle time. This matters for dental and medical applications where different materials (CoCr, titanium, gold, stainless) require different processing intensities and where repeatability is a quality requirement.
Free sample testing before you buy
Mass Finishing’s sample processing lab will create a custom finishing recipe for your specific parts—free of charge. Send your parts, and we’ll develop the media selection, compound, speed, and cycle time that produce the results you need. You’ll see finished parts before you commit to a machine.
HZ-6 Barrels
The HZ-6 has two barrel positions (compared to the HZ-12’s four), each accepting one full-size or two half-size latched-end barrels. Both barrel types are identical to the HZ-12’s barrels—a deliberate design choice that makes the HZ-6 a natural stepping stone to the HZ-12.
Full-Size Latched-End Barrel (8.375″ L x 5″ D)
The standard configuration with the highest per-barrel capacity. Snap latches allow lid removal in seconds. Handles parts up to 8″ long and 4.5″ in diameter—dental partial frameworks, longer surgical instruments, jewelry bangles, and Swiss-machined components.
Half-Size Latched-End Barrel (3.625″ L x 5″ D)
Two half-barrels fit per cradle position (4 total), giving you more compartments for smaller parts. Dental labs finishing individual crowns, implant abutments, and inlays prefer the half-barrel configuration because each piece stays isolated during processing—preventing contact between restorations of different alloy compositions or between delicate components where even minor surface marks are unacceptable.
A second set of barrels allows continuous operation: load the next batch while the current one runs.
Get Stocked Up on the Essentials
Shop our media and compound store
HZ-6 Recommended Accessories
Processing Table
- Collect processing water and easily clean out sediment
- Reduce the mess from the finishing process
- Sludge tank can be sold separately
Media Screening Kit
- Quickly separate media from parts by dumping full barrels into various-sized screens
- Screens are sized in 1/4″ to 1/8″ increments
Media Storage Rack
- Keep media organized and out of the way when not in use
- Industrial powder-coated steel construction
- Fits 12 MFI gray media bins
- 48″H x 36″W x 24″D
Extra Barrels
- Dramatically reduce downtime on the machine
- Load and unload the second set of barrels while the machine is running
Additional HZ-6 Specs & Resources
Specifications
Main Motor |
|
Voltage |
|
Total Capacity |
|
Approximate Shipping Weight |
|

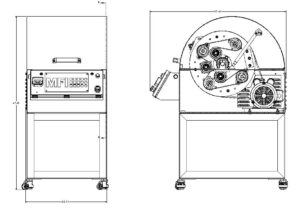

Overall Dimensions |
|
Machine Construction |
|
Paint |
|
Barrel Construction |
|
Control Panel |
|
Brake |
|
Safety Interlock |
|
HZ-6 vs. HZ-12: Start Small or Scale From Day One?
|
Factor |
HZ-6 |
HZ-12 |
|
Barrel Positions |
2 |
4 |
|
Max Part Size |
8″ L x 4.5″ D |
8″ L x 4.5″ D (same) |
|
Barrel Sizes |
Full-size and half-size latched-end |
Full-size and half-size latched-end (same) |
|
Total Capacity |
~6 liters |
12 liters |
|
Max RPM |
250 |
(Standard variable frequency) |
|
Power |
120V single phase |
120V single phase (same) |
|
Motor |
1 HP |
1 HP (same) |
|
Footprint |
Under 6 sq ft |
34″W x 30″D (~7 sq ft) |
|
Best For |
Process evaluation, small-batch production, independent jewelers, R&D labs, budget-conscious entry |
Daily production use, dental labs with steady volume, medical device manufacturers with validated processes |
Choose the HZ-6 if you’re evaluating centrifugal barrel finishing for the first time, your daily batch volume is small, you want the lowest initial investment, or you’re an independent jeweler or small lab that doesn’t need four barrels of throughput. The HZ-6 produces the same finish quality as the HZ-12—it just processes half as many parts per cycle.
Go straight to the HZ-12 if you already know centrifugal barrel finishing works for your parts (from sample testing or prior experience), your daily volume justifies four barrels, or you want to maximize throughput from day one without planning a machine upgrade later.
The upgrade path is seamless: processes developed on the HZ-6 transfer directly to the HZ-12 because the barrel sizes are identical. No re-validation, no recipe changes, no wasted development time.
