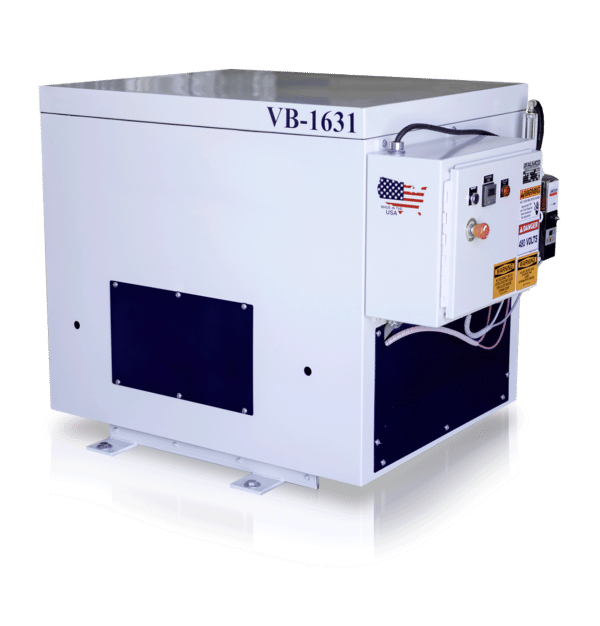

VB Series Tub Tumbler for Polishing and Deburring

Built for All-Day, Every-Day Batch Production: Variable Amplitude, 1″ Lining, 5+ Model Sizes

The VB Series is Mass Finishing’s industrial-grade vibratory tub line, built for high-utilization production—not occasional use. Compared to the versatile W-5 and budget-focused PV Series, VB machines feature heavier construction, thicker liners, and production-level process control.

The key difference is variable amplitude. While W-5 and PV adjust vibration via motor speed, the VB Series adjusts both speed and counterweight. This allows finer control over finishing intensity (amplitude) and media flow (frequency), delivering more consistent results across different parts and media.

Available in multiple sizes—from ~1 cu ft to over 10 cu ft, with 1–10+ HP motors—the VB Series supports everything from small batch work to high-volume production beyond the capacity of W-5 and PV machines.

Contact Us

How the VB Series Works: Variable Amplitude for Production-Level Process Control

Every vibratory tub creates tumbling action through an unbalanced (eccentric) shaft driven by a motor. The shaft’s rotation creates vibration; the vibration causes parts and media to roll in a continuous tumbling mass. The difference between machines lies in how much control you have over that tumbling action.

The PV Series offers fixed-speed vibration—you turn it on and the media tumbles at a set intensity. The W-5 offers variable speed—you can adjust how fast the motor spins, which changes both the frequency and the force of vibration together. The VB Series offers variable amplitude—you can adjust the counterweight position on the eccentric shaft independently, which controls how far the tub moves on each vibration cycle (the amplitude) separate from how fast it cycles (the frequency).

Why does this matter? Amplitude controls the aggressiveness of the media-to-part contact. Higher amplitude means each media particle strikes the part surface harder and travels further. Lower amplitude produces gentler, more controlled contact. Frequency controls how many contact events happen per second. In production finishing, where you’re optimizing cycle time against surface quality requirements, the ability to tune these independently means you can dial in the exact combination of aggressiveness and speed for each part type—rather than accepting whatever ratio a single-knob speed control produces.

Operation is straightforward: load media and parts, add water and compound (for wet processing) or dry media, close the sound-deadening hood, set your amplitude and timer, and run the cycle. When complete, open the plug-type discharge door (or optional air-operated door) to unload parts and media.

VB Series Standard Features

Variable amplitude control

Adjust the counterweight position to control tumbling aggressiveness independently of vibration frequency. This gives operators finer process control than variable-speed-only machines—critical for production operations running different media types and materials through the same tub.

1″-thick polyurethane lining

Double the thickness of standard vibratory tub linings. The additional material absorbs more impact energy, reduces noise transmission into the machine frame, and extends liner life under constant daily use with abrasive ceramic media. For production operations running 8+ hours per day, the thicker liner means longer intervals between replacements and lower maintenance cost per part.

Sound-deadening hood with foam

The VB’s sound hood uses acoustic foam insulation—not just a metal cover. Combined with the 1″ polyurethane lining, the VB achieves lower noise levels than an unenclosed tub of the same size while running heavier media loads at higher amplitudes.

Wet or dry processing

Run wet with ceramic, plastic, or synthetic media and compound for deburring and polishing. Switch to dry with corn cob, walnut shell, or dry polishing media for drying, burnishing, or cleaning. No modification needed to change between modes.

Process timer + E-stop

Set the cycle time and walk away—the machine stops automatically when the timer expires. The E-stop on the electrical enclosure provides immediate shutdown in emergencies. Both are standard on all VB models, meeting the minimum requirements for production floor safety in most manufacturing environments.

Plug-type discharge door

A removable plug at the tub’s discharge end allows parts and media to flow out by gravity and vibration. Upgradeable to an air-operated discharge door for hands-free unloading on production lines where speed and ergonomics matter.

Optional Upgrades

Tub divider: Splits the tub into separate compartments for processing different part types or sizes in the same cycle without mixing. This is a capability neither the W-5 nor the PV Series offers. Contract manufacturers running mixed customer orders benefit the most.
Air-operated discharge door: Replaces the manual plug with a pneumatic door that opens and closes at the push of a button. Reduces unloading time and eliminates the physical effort of removing a plug from a tub that may contain 50+ lbs of media and parts.
Automated loading and unloading: For high-volume production lines, the VB can be configured with automated material handling. This transforms the VB from a standalone batch machine into an integrated production cell—parts flow in, finish, and flow out without manual intervention.
Automatic lubrication system: Keeps the vibrator shaft bearings lubricated automatically, reducing maintenance requirements on machines that run continuously.
Flowmeter: Monitors water flow rate during wet processing for consistent compound delivery and process documentation.
UL 508A electrical controls: For facilities that require UL-listed control panels for code compliance or insurance requirements.

VB Series Vibratory Tub Basic Operation

When parts and media are put into the tub of the vibratory machine, the counterweights on the spinning vibrator shaft make the processing tub shake on its springs. This shaking makes the parts and media inside the tub vibrate and roll in an organized way. This action causes parts and media to contact each other, achieving a wide variety of finishing applications from deburring, descaling, polishing, cleaning, and even flash removal. You can control the rolling action by adjusting the speed of the vibrator assembly and the amount of counterweight.

Available VB Series Models

Model No.	Working Capacity (cu ft)	Tub Cross Section (in)	Tub Length (in)	Drive HP	Overall Dimensions (in)
VB-1410	1.134	14”	10”	1	31 x 30 x 41
VB-1439	4.423	14”	39”	5	48 x 33 x 44
VB-1448	5.444	15”	48”	5	89 x 33 x 49
VB-1615	2.288	16.5”	16.5”	3	46 x 34 x 40
VB-1631	4.651	16.5”	30.5”	5	53 x 35 x 38
VB-1648	7.404	16.5”	48”	10	86 x 35 x 45
VB-2034	7.603	19.25”	34”	7.5	63 x 42 x 51
VB-2048	11.261	19”	48”	7.5	75 x 62 x 55
VB-2056	13.108	19”	56”	10	67 x 42 x 53

Three Vibratory Tub Lines: Which One Fits Your Operation?

Factor	PV Series	W-5	VB Series
Positioning	Most economical, quietest	Versatile general-purpose	Industrial-strength production
Vibration Control	Fixed speed	Variable speed (VFD)	Variable amplitude + speed
Liner Thickness	Cast urethane (ribbed)	Polyurethane (standard)	1″ polyurethane (heavy-duty)
Size Range	0.75–5 cu ft	5 cu ft (one size)	~1–10+ cu ft (5+ models)
Tub Divider Option	No	No	Yes (optional)
Automated Loading	No	No	Yes (optional)
Sound Hood	Sound-abated design	Hinged sound cover	Sound-deadening foam hood
Water Management	Not included	10-gal settling tank + pump	(Verify options)
Best For	Budget buyers, noise-sensitive spaces, small shops	General-purpose shops, wet/dry flexibility, easy setup	Production finishing, heavy daily use, process optimization, larger capacity needs

Choose the PV Series if budget and noise are your top priorities, your volumes are small to moderate, and you don’t need variable vibration control or tub dividers.

Choose the W-5 if you want a versatile single-machine solution with variable speed, integrated water management, wet/dry capability, and a convenient discharge door—all included at a moderate price point.

Choose the VB Series if you run vibratory finishing as a daily production operation, you need variable amplitude for process optimization, your parts or volumes require more capacity than 5 cu ft, you want the option for tub dividers or automated loading/unloading, or you need the heaviest-duty construction for constant multi-shift use.

What the VB Series Is Built For

Production-Scale Batch Processing

The VB Series is designed for operations where vibratory finishing runs all day, every day. The 1″-thick polyurethane liners, heavy-gauge steel construction, and variable amplitude control are all production-durability features: they extend service life, reduce maintenance frequency, and provide the process control needed to maintain consistent finish quality across thousands of cycles.

Automotive suppliers, metal fabrication shops, stamping operations, and contract manufacturers with established finishing schedules are the VB’s primary buyers. These are operations where the finishing machine runs for a full shift (or multiple shifts), processing batch after batch of parts with minimal downtime between cycles.

Mixed-Part Production With Tub Dividers

The optional tub divider is a VB-exclusive feature that creates separate compartments within the tub. This allows contract manufacturers and job shops to process different part types, materials, or customer orders in the same cycle without mixing. It’s the vibratory equivalent of the barrel dividers on the HZ-Series centrifugal barrel machines—and it’s a capability that neither the W-5 nor the PV Series offers.

Longer Parts That Need a Long Tub

The VB-1448 has a 48″-long tub—the longest vibratory tub in the Mass Finishing lineup. Parts up to approximately 46″ long that would never fit in a vibratory bowl or in the W-5’s 35″ tub tumble freely in the VB-1448. Extrusions, long stampings, structural brackets, and bar-shaped components all benefit from this extended tub length.

Automated Finishing Lines

With the optional automated loading and unloading, the VB Series can be integrated into production lines as a fully automated finishing station. Parts flow in from a prior process (machining, stamping, casting), finish in the VB tub, and flow out to the next station (washing, inspection, coating)—all without manual intervention. This is a production-line integration capability that the W-5 and PV machines don’t offer.
