3 Cubic Feet of High-Energy Disc Finishing

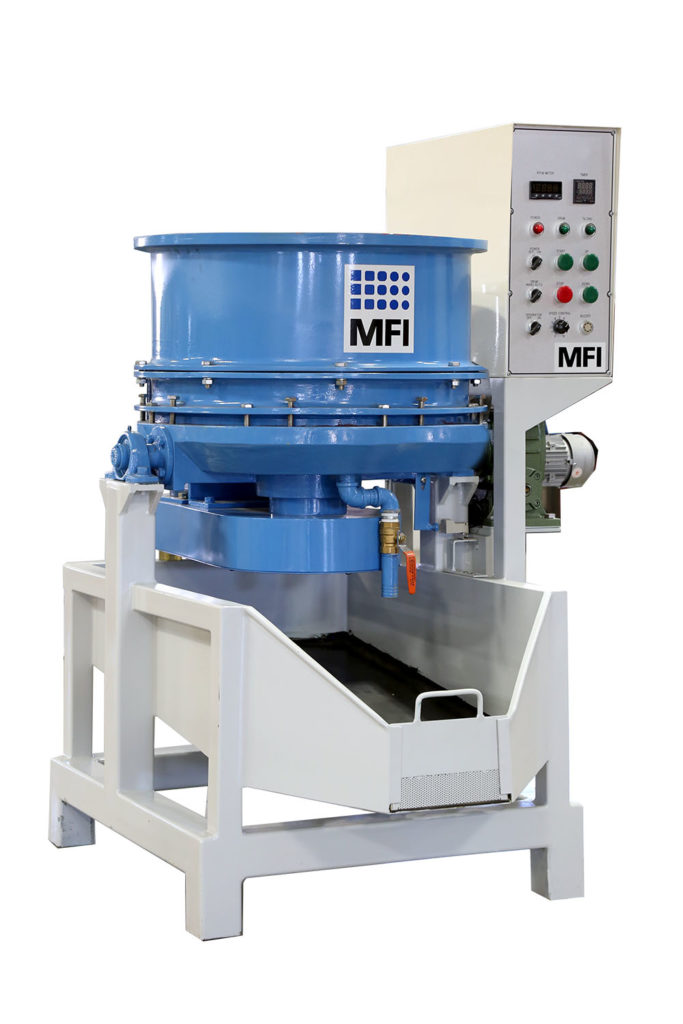

The RF-100 is the production workhorse of the manual RF-Series. With 3 cubic feet of capacity and a 5 HP motor, it doubles the RF-50’s batch size (1.5 cu ft) and delivers 2.5x the power. It’s built for manufacturers who need a centrifugal disc finisher that can keep up with daily production.
The step up isn’t just volume—it’s capability. The 5 HP motor maintains speed under heavy ceramic media loads, enabling effective deburring and edge radiusing on harder materials like hardened steel, stainless, and titanium. The larger drum also handles bigger parts and improves media-to-part ratios for more uniform finishes.
Like other RF models, the RF-100 offers manual loading, batch or continuous processing, and hydraulic disc unloading. It’s also available as the automated RF-100A, which adds hands-off loading, weighing, finishing, separating, and washing. Manufacturers can start with the manual version and upgrade to automation as volume grows.
Capacity: 3 cu ft
Working Capacity: 2.1 cu ft
Overall L x W x H: 60″ x 40″ x 52″
Drum Size: 24″ x 15″
Motor: 5 HP
Weight: 1,215 lbs
Voltage: 230v or 460v
RF-100 Operation: The Same Simple Workflow, Built for Heavier Workloads
The RF-100 operates on the same centrifugal disc principle as the RF-20 and RF-50: a rotating disc at the bottom of an open-top drum creates a toroidal flow that drives media against part surfaces at high energy. The workflow is familiar—load media and compound, set speed and timer, add parts, and run the cycle. The open top lets you add parts during operation and visually inspect the process in real time.
What changes at the RF-100 level is the weight of material the machine handles per cycle. Three cubic feet of ceramic media and metal parts is substantially heavier than the RF-50’s 1.5 cu ft load. The 5 HP motor is sized for this—it sustains disc speed under full load without the power fade that a smaller motor would experience. This matters because consistent disc speed equals consistent finishing force, which equals uniform results across every part in the batch.
Unloading uses the same hydraulic disc tilt and dumping system as the RF-50, but the recovery process handles a larger volume of parts and media. For shops running the RF-100 at high utilization, consider whether the manual dump-and-sort workflow scales to your daily throughput needs. If it doesn’t, the RF-100A automated version eliminates the manual steps entirely.
Standard Features
- Variable Frequency Drive
- Digital Process Timer
- Polyurethane Lined
- Upflow Drain System (water is pushed up thru disc gap & drains toward top of machine)
- Finish Cycle Buzzer
- Ideal Unload Height
- Convenient Operator Control Console
- Hydraulic Disc Unload
- Variable Process Timer
- Amp Meter
- RPM Meter
RF-100 Centrifugal Disc Basic Operation
To operate the RF-100 Centrifugal Disc Finisher, manually load the barrel with media, parts, and compound. Turn on the machine and set it to your desired speed. Then, drop in your parts and allow the machine to complete the cycle. Once the cycle is finished, press the “stop” button to stop the cycle. Position the recovery bin under the machine, and slowly tip the barrel to separate the parts from the media.
RF-100 Features: Built for Daily Production
|
Feature |
Feature |
|
5 HP motor for heavy media loads The RF-100’s 5 HP motor is 2.5 times the RF-50’s power. When the drum is loaded with dense ceramic media and hardened steel parts, the additional horsepower maintains consistent disc speed without strain. For production operations running aggressive deburring cycles with heavy media, this motor capacity is the difference between consistent results and cycle-to-cycle variability. |
3 cu ft capacity—the largest manual-load model The RF-100 is the biggest centrifugal disc finisher in the RF-Series that uses manual loading and dumping. It processes double the RF-50’s batch volume per cycle. For production operations that need more capacity without jumping to full automation, the RF-100 is the sweet spot. |
|
Variable frequency drive (standard) Full speed control from gentle polishing to aggressive deburring. At 5 HP, the VFD delivers more torque at each speed setting than the smaller models—meaning the RF-100 can run aggressive cutting cycles on harder materials without the speed drop-off that less powerful machines experience under heavy media loads. |
Hydraulic disc unload with dumping system The drum tilts to separate parts from media and feeds them into a recovery bin. At 3 cu ft of batch volume, this is a substantial amount of material per dump—the hydraulic system handles the weight without requiring operator exertion. Position the recovery bin, activate the dump, and the batch is unloaded. |
|
Upgrade path to the RF-100A The RF-100 is the manual version of the machine that also comes as the fully automated RF-100A. Processes developed on the RF-100 transfer directly to the RF-100A when you’re ready for automated loading, separating, and washing. Start manual, upgrade to automated—no process re-development needed. |
Polyurethane-lined drum + upflow drain Durable polyurethane protects parts and extends drum life under heavy daily use. The upflow drain system keeps the drain above media level, preventing clogs during continuous-flow operation. Both features are especially important at the RF-100’s production-level utilization, where the machine runs multiple cycles per shift. |
What the RF-100 Is Built For
Production-Scale Disc Finishing for Established Operations
The RF-100 is the machine for manufacturers who run centrifugal disc finishing as a scheduled production operation—not a side process, not an evaluation, but a core step in their manufacturing workflow. At 3 cubic feet per cycle, the RF-100 processes enough volume to serve as the primary finishing station for a production line, handling the daily output of a CNC cell, stamping press, or casting operation without creating a bottleneck.
The 5 HP motor handles the media loads that production finishing demands. Where lighter evaluation and small-batch work can run with plastic or synthetic media at moderate speeds, production deburring of hardened steel, stainless, or cast components often requires dense ceramic media at higher speeds. The RF-100 has the power to sustain that intensity across a full shift of back-to-back cycles.
Part Types and Industries
The RF-100 handles the same categories of small, loose parts as the RF-20 and RF-50, but at production volume and with the power to process harder materials more aggressively:
- Stamped and formed components: brackets, clips, contacts, terminals, spring clips, washers
- CNC-machined parts: fittings, connectors, bushings, spacers, valve components
- Cast and MIM components: small housings, levers, trigger components, actuator bodies
- Fasteners and hardware: screws, bolts, pins, rivets, locking washers, threaded inserts
- Additive-manufactured parts: 3D-printed metal components requiring surface refinement
- Automotive small parts: sensor housings, connector pins, linkage components, small brackets
Who Buys the RF-100
- Mid-size machine shops and contract manufacturers with established finishing volume that the RF-50 can’t sustain in a single shift. The RF-100’s 3 cu ft capacity reduces cycle count per day compared to running the same volume through a smaller machine.
- Manufacturers evaluating automation who want to validate the process on a manual machine before investing in the RF-100A. The manual RF-100 uses the same drum, motor, and process physics as the automated version—so results transfer directly.
- Operations replacing multiple vibratory machines with a single centrifugal disc finisher. One RF-100 running 10–30x faster than a vibratory bowl often replaces two or three vibratory machines and delivers better finish quality.
Choosing the Right RF-Series Size: RF-50, RF-100, or RF-200
|
Factor |
RF-50 |
RF-100 |
RF-200 |
|
Capacity |
1.5 cu ft |
3 cu ft |
6 cu ft |
|
Drum Size |
20″ x 15″ |
(Verify from live page) |
34″ x 20″ |
|
Motor |
2 HP |
5 HP |
7.5 HP |
|
Weight |
850 lbs |
(Verify from live page) |
1,425 lbs |
|
Automated Version |
No |
Yes (RF-100A) |
Yes (RF-200A) |
|
Best For |
Small-to-medium shops, daily production at moderate volume |
Committed production operations, mid-size batch volume, automation evaluation path |
High-volume production, largest batch sizes, heavy-duty finishing |
Choose the RF-50 if your daily volume fits in 1.5 cu ft batches, your parts are small, and your budget favors the most economical option. The RF-50 is the value leader in the RF-Series.
Choose the RF-100 if you need 3 cu ft of batch capacity, your finishing operation runs as a scheduled production step, you want the 5 HP motor for heavier media loads, or you’re evaluating the automation path through the RF-100A.
Step up to the RF-200 if your batch volume demands 6 cu ft per cycle, your parts are larger, or your production schedule requires the highest throughput the manual RF-Series offers. The RF-200’s 7.5 HP motor handles the heaviest loads in the standard lineup.
Not sure which size fits? Send us sample parts—we’ll process them free of charge and recommend the right machine.
Manual RF-100 vs. Automated RF-100A: Which Setup Fits Your Operation?
The RF-100 and RF-100A share the same drum, motor, and finishing physics. The difference is workflow automation:
Because the RF-100 and RF-100A use the same drum and motor, finishing processes developed on the manual machine transfer directly to the automated version. Media recipes, cycle times, and speed settings stay the same. This makes the RF-100 a natural proving ground for shops that want to validate their process before committing to the automation investment. |
