LR Series Vibratory Bowl

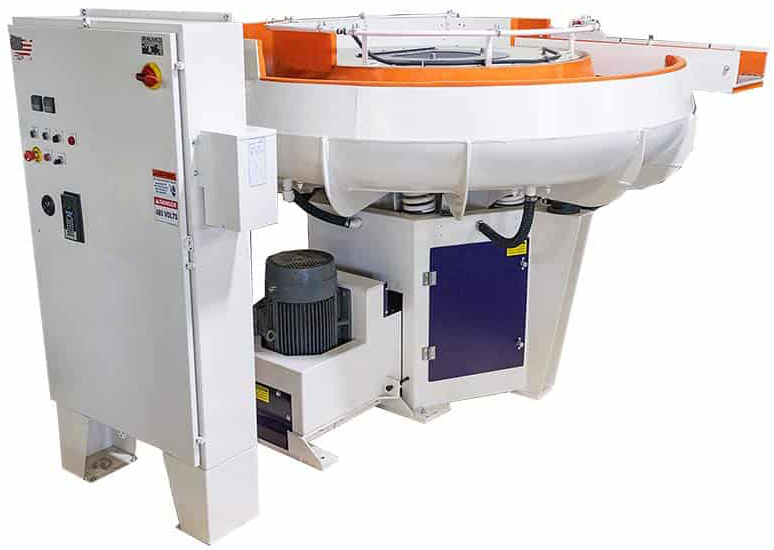

LR Series Vibratory Finishing Bowls
The LR Series Vibratory Bowls are manufactured by our sister company, ALMCO. They are well-suited for both through-feed and batch processing of parts and have a built-in internal separation system. LR stands for “long radius,” as these bowls have a large working channel, ideal for finishing delicate or long and narrow parts.
About the LR Series Vibratory Bowl
Features
- Once around and out parts flow or batch processing
- Internal separation system
- Natural contour molded urethane lined tub
- Available in 230 or 460v / 3ph / 60hz (other voltages upon request)
- Wet or dry process capabilities
- Compact design for minimal floor space at low working heights
- Variable amplitude (gentle or aggressive)
- Variable progression
- Multiple replaceable drain plates
- Multiple sizes to fit your application
Optional Items
- Automatic lubrication system
- Flowmeter
- Tachometer
- Air-operated discharge door
- Robust sound hood
- Gate clearing feature for internal
separator - Various screen options available
- UL 508A electrical controls
LR Series Basic Operation
The LR Series vibratory bowl functions through a vibrating motion that enables small abrasive media to interact with parts for finishing. The bowl is loaded with a blend of media, water, and compound that assists in the finishing process, and the parts are positioned close to the discharge screen. While the bowl vibrates, the media in the mixture grinds against the parts, ensuring a consistent and uniform finish. After the parts complete a pass around the bowl, an internal separation system separates them from the media.
Available LR Series Models
| Model | Working Capacity Cu Ft. |
Channel Cross-Section | Vibrations Per Min. |
Drive Motor HP | Overall Dimensions Inches |
Shipping Weight Lbs. |
| OR-5VLR | 4.2 | 8.25″ | 1500 | 3 | 54 x 54 x 36 | 2850 |
| OR-9VLR | 7.6 | 10″ | 1400 | 5 | 80 x 66 x 44 | 3925 |
| OR16-VLR | 15.2 | 12.5″ | 1400 | 10 | 96 x 84 x 50 | 5300 |
| OR-25VLR | 25.7 | 15″ | 1240 | 20 | 98 x 98 x 66 | 7500 |
| OR-40VLR | 38.8 | 17″ | 1240 | 25 | 114 x 114 x 78 | 9500 |
