OR Series Vibratory Bowl

Almco OR Vibratory Machine

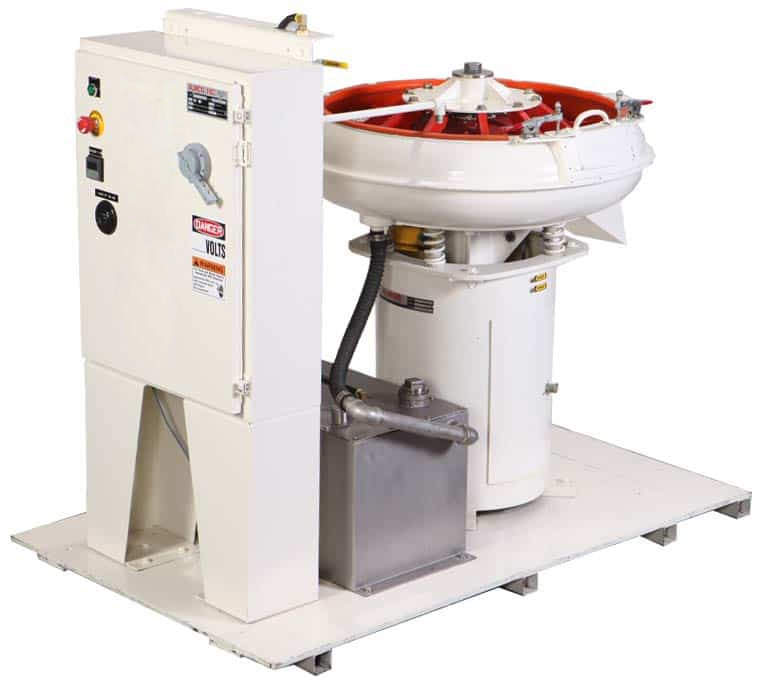

OR Series Vibratory Finishing Bowls

The OR Series Vibratory Bowls are manufactured by our sister company, ALMCO. It is the only vibratory bowl with dividers available, allowing operators to separate parts into different compartments. The ability to separate parts prevents part impingement and eliminates the need for fixturing, which is ideal when finishing sensitive parts.

About the OR Series Vibratory Bowl


  • Multiple sizes to fit your application
  • Natural contour molded urethane lined tub
  • Available in 230 or 460v / 3ph / 60hz (other voltages upon request)
  • Wet or dry process capabilities
  • Variable amplitude (gentle or aggressive)
  • Variable progression
  • Multiple replaceable drain plates

Optional Items

  • Tub dividers
  • Removable center dome
  • Variable frequency
  • Sound enclosure
  • Automatic lubrication
  • Air-operated discharge door

OR Series Basic Operation

The OR Series vibratory bowl utilizes a vibrating motion that enables small abrasive media to come into contact with parts for finishing. It is fitted with a rotating divider that provides multiple compartments for parts handling. The bowl is filled with a mixture of media, water, and compound to aid in the finishing process. Featuring a natural contour molded urethane-lined tub, the OR Series ensures that parts are fully immersed in the mass and are subjected to a thorough deburring while both the media and parts rotate in an upswept angular clockwise movement. Parts are loaded and unloaded from the rotating mass without the need to stop the machine.

Almco OR Vibratory Machine

About the OR Series Vibratory Bowl

Model Working Capacity
(Cu Ft)
Channel Cross-Section Vibrations
Per Min.
Drive Motor
Overall Dimensions
Weight (Lbs.)
OR-3 2.4 8.25″ 1750 2 53 x 36 x 40 778
OR-5 4.5 10″ 1500 3 57 x 45 x 40 1849
OR-10 8.1 12.5″ 1400 5 69 x 53 x 49.5 2155
OR-20 17 17.25″ 1400 10 80 x 60 x 52.5 4300
OR-23 22.8 19″ 1400 10 80 x 66 x 55 4900
