HZ-12 Centrifugal Barrel Finisher

Specs

Motor: 1 HP

Voltage: 120 Volt

Total Capacity: .42 cu. ft., 12 liters

Weight: 700 lbs.

Max RPM: 250

Barrel Dividers: Not Available

HZ-12 High Energy, Centrifugal Barrel Finishing Machine

The HZ-12 is Mass Finishing’s most compact industrial finishing machine. The HZ-12 Centrifugal Barrel Finisher features four removable barrels. By purchasing a second set of four barrels, the operator can run one set of barrels while they are loading and preparing another. This can dramatically reduce downtime on the machine.

The HZ-12 works well in small places like dental and medical device labs or in cell productions. Despite its smaller stature, it still packs the same high-end finishing punch of its bigger counterparts.

High Energy Finishing

HZ High Energy series Centrifugal Barrel Finishing (CBF) systems from Mass Finishing are the fastest and most economical form of finishing and deburring machines available. Barrel tumblers are the industry workhorse in polishing, deburring and deflashing parts. From jet engine blades in the aerospace industry to heart valves and medical implants, these tumbling machines are the versatile and money-saving solution for polishing and deburring.

In a matter of minutes this deburr tool can clean up metal, acrylic or rubber and other materials. They can drastically reduce the finishing time over vibratory machines.

Isotropic or Iso Finishing

The finish achieved by these machines is isotropic, meaning parts are polished uniformly and evenly in all directions, something that cannot be achieved by hand. Variable speed control allow these tumbling machines to achieve whatever finish the operator desires, from a simple polish at low speed, to full scale deburring and edge radiusing at full RPM.

Main Motor

·        1 HP Leeson Brand
·        Totally Enclosed
·        120v
·        Single Phase, 60 hertz

Voltage

·        120v Single Phase or 220V CE Single Phase

Total Capacity

·        12 Liters or .42 cubic feet

Approximate Shipping Weight

·        700 lbs.

Overall Dimensions

·        34″W x 30″D x 55″H (On Stand)

Machine Construction

·        Heavy duty steel
·        All welded construction
·        Reinforced, gusseted, and welded to maximum strength

Paint

·        Heavy duty powder coat
·        Scratch resistant

Barrel Construction

·        Hexagon in shape with removable end-load lids
·        8.375” long, and 5” diameter
·        Lined with polyurethane 1/4” min. thickness
·        Entire barrel is removed from machine to load/unload media and parts.

Control Panel

·        NEMA 12 enclosed panel
·        1hp Allen Bradley Variable Frequency Drive
·        UL Certification Available Upon Request
·        0-100 Hour cycle timer mounted on panel
·        Power jog of turret

Brake

·        Automatically stops the turret when a stop is activated, or cycle is completed
·        Activated if door is opened

Safety Interlock

·        Prevents door from being opened during operation
·        Machine must be powered on in an idle mode to disengage lock
·        Can only be opened once cycle is finished

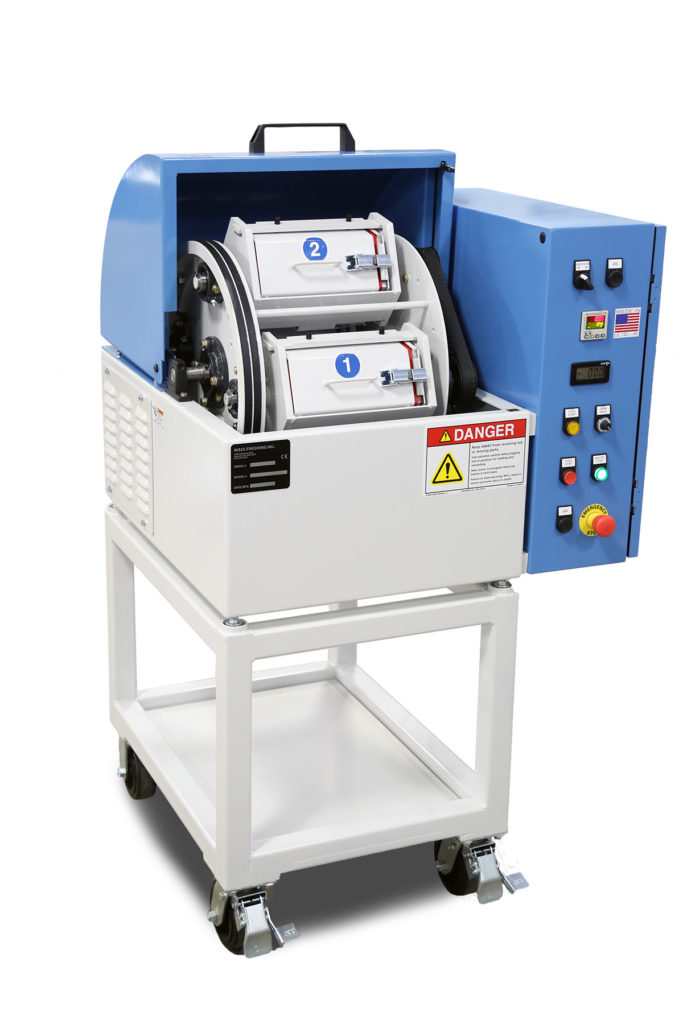

The HZ-12 with it’s hood closed

An HZ-12 barrel with removable lid.

How It Works

Centrifugal barrel finishing machines operate on the “Ferris Wheel” principle with a one-to-one ratio of barrel rotation to turret rotation. Each of the four barrels is loaded to roughly 50-80% full of media, parts, water, and compound. During operation, rotation of the turret creates a sliding force inside the barrel. This motion causes parts and media to contact each other in random or isotropic directions. The resulting finish is consistent across the entire surface of the part. MFI provides complete sample processing and stocks all required media and supplies.

Available Options and Accessories

Part and Media Separator

Make the media and part separation process simple with our free standing media separator. Dump full barrels on the vibratory screen and watch as the media and your parts separate.

Processing Table and Sludge Tank

Reduce the mess from the process with MFI’s processing table and sludge tank. Sediment from your tumbling process is collected and easily cleaned out.

PLC Touchscreen Interface

Store processes as recipes in this PLC touchscreen interface. This unit replaces the analog cycle start buttons and allows for better monitoring of machine use and time.

Extra Barrels

Dramatically reduce downtime on the machine by purchasing a second set of barrels. The operator can load and unload while the machine is running.
