HZ-220 Centrifugal Barrel Finisher

Specs

Motor: 15 HP

Voltage: 230-460v

Capacity: 8 Cu. Ft./227 Liters

Weight: 5200 lbs.

Dimensions: 81"L x 57"W x 75"H

Barrel Dim.: 27.5"L x 11.5" Dia.

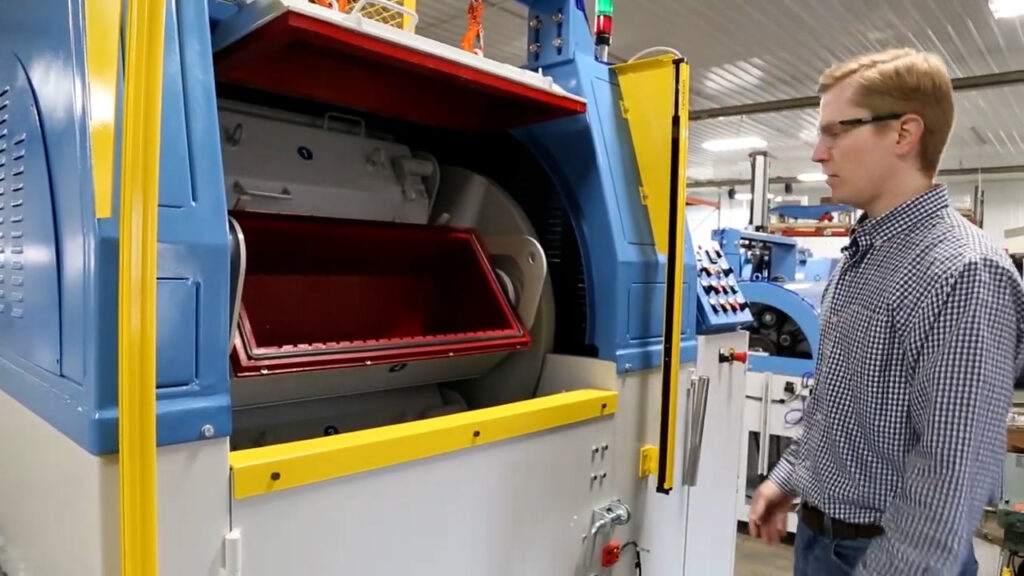

HZ-220 High Energy, Centrifugal Barrel Finishing Machine

The HZ-220 is a full sized industrial finishing machine. This CBF machine can be fully customized with a touchscreen control panel, parts separator, drain pan and infrared safety curtain.

HZ High Energy series Centrifugal Barrel Finishing (CBF) systems from Mass Finishing are the fastest and most economical form of finishing machine available. They are the industry workhorse in polishing, deburring and deflashing parts. From jet engine blades in the aerospace industry to heart valves and medical implants, these tumbling machines are the versatile and money-saving solution for polishing and deburring.

Isotropic or Iso Finishing

In a matter of minutes this deburr tool can clean up metal, acrylic or rubber parts are finished in what could take hours or even days by hand. The finish achieved by these machines is isotropic, meaning parts are polished uniformly and evenly, something that cannot be achieved by hand. Variable speed control allow these tumbling machines to achieve whatever finish the operator desires, from a simple polish at low speed, to full scale deburring and edge radiusing.

HZ-220 High Energy, Centrifugal Barrel Finishing Machine

The HZ-220 is a full sized industrial finishing machine. This CBF machine can be fully customized with a touchscreen control panel, parts separator, drain pan and infrared safety curtain.

HZ High Energy series Centrifugal Barrel Finishing (CBF) systems from Mass Finishing are the fastest and most economical form of finishing machine available. They are the industry workhorse in polishing, deburring and deflashing parts. From jet engine blades in the aerospace industry to heart valves and medical implants, these tumbling machines are the versatile and money-saving solution for polishing and deburring.

Isotropic or Iso Finishing

In a matter of minutes this deburr tool can clean up metal, acrylic or rubber parts are finished in what could take hours or even days by hand. The finish achieved by these machines is isotropic, meaning parts are polished uniformly and evenly, something that cannot be achieved by hand. Variable speed control allow these tumbling machines to achieve whatever finish the operator desires, from a simple polish at low speed, to full scale deburring and edge radiusing.

Main Motor

· 15 HP Brand

· Totally Enclosed

· Three Phase, 60 hertz

Barrel Rotation Motor

· 2 HP, 230/460 volt, 3 phase, 60 hertz.

Machine Voltage

· 230/460 volt (Please specify upon order)

Total Capacity

· 9.6 cubic feet

Approximate Shipping Weight

· 5200 lbs. (Machine only)

Drive

· Variable Frequency

· Allen-Bradley, PowerFlex 525

Overall Dimensions

· 75″L x 54″W x 76″H (machine only, No Cover Lift)

· 89”L x 54”W x 90” H (With Separator)

· 100” x 95” footprint with drain pan option

Machine Construction

· Heavy duty steel

· All welded construction

· Reinforced, gusseted, and welded to maximum strength

Paint

· Heavy duty powder coat

· Scratch resistant

Barrel Construction

· 27.5”L x 12”W

· Four hexagonal barrels with removable lids

· Cam locks for secure operation

Barrel Liners

· Hot poured polyurethane

7/8” thick

· Field replaceable

· 11 Divider slots, 12 individual chambers possible

Barrel Cover Lift

· Air driven system for removing covers

· Controlled via toggle switch on control panel

Control Panel

· NEMA 12 enclosed panel

· UL Certification Available at Additional Cost

· PLC Option Available at Additional Cost

· 0-100 Hour cycle timer mounted on panel

· Power jog of turret

Brake

· Automatically stops the turret when a stop is activated or cycle is completed

· Activated if door is opened

Safety Interlock

· Prevents door from being opened during operation

· Machine must be powered on in an idle mode to disengage lock

· Can only be opened once cycle is finished

Vibratory Media Separator

· Dump fully loaded barrels inside machine

· Media and parts are separated through screens and vibration

· Media and parts travel out of machine to bins

Media Classification Drawer

· Add on to vibratory media separator

· Screens out undersized media to prevent lodging issues

· Removes debris from system

Spray Header for Separator

· Water spray bar that runs automatically when separator is running to clean media and parts

Drain Pan

· 100”L X 79-1/2”W X 8-1/2”H

· Collects any water drainage during loading/unloading

· Grip strut floor surface to prevent operator slips and falls

Processing Table and Sludge Tank

· Constructed of 1/2” P.V.C. and Anodized aluminum frame

· Includes three compartment sludge tank mounted on casters for easier mobility

· Sludge tank can be sold separately.

Barrel Dividers

· Made from NYLOIL® A cast nylon with built-in oil lubrication

· Provides superior machinability, performance, and durability compared to other plastic.

PLC Controller

· Horner Electric EXL6 –

· Allen Bradley –

· Store recipes and processes

· Maintenance reminders and machine diagnostics

· Automated fwd/rev and speed adjustment

Rinse Screen

· Fits over barrel and dividers

· Attaches with quick latches

· Spray out dirty water and debris without dumping barrels

· watch the video

Infrared Safety Light Curtains

· Disables machine if curtain is broken while door is open during loading/unloading

· Added layer of safety

Light Tower Indicator

· Visual indicator of machines status

· Can be customized to match existing equipment

Media Return System

· Operated with foot pedal

· Lifts media to bench height after media baskets are slid onto platform

· Reduces lifting requirements on operators

Custom Logo/Paint

· Paint matched to customer color scheme requirements

· Sticker Logo provided by MFI or Client

Centrifuge Module

CF55 SD Series

MicroseparatorTM

· Clean and process effluent from tumbling process

· Processed wastewater is safe to send to drain or be used in a recycling system.

· Solids are collected through centrifugal action of rotor via a reusable liner

· watch the video

Automatic Door Opener

· Makes opening main access door easier

· Eliminates need for lifting on operator

Media/Compound

· Required for running parts

· MFI Stocks all consumables used in testing process

· Media ships in 50 or 55 pound quantities

· Pricing Varies Depending on Type

Media Storage Rack

· Keep media out of the way when not in use

· Industrial powder coated steel construction

· Made to fit 12 MFI gray media bins

How It Works

Centrifugal barrel finishing machines operate on the “Ferris Wheel” principle with a one-to-one ratio of barrel rotation to turret rotation. Each of the four barrels is loaded to roughly 50-80% full of media, parts, water, and compound. During operation, rotation of the turret creates a sliding force inside the barrel. This motion causes parts and media to contact each other in random or isotropic directions. The resulting finish is consistent across the entire surface of the part. MFI provides complete sample processing and stocks all required media and supplies. Watch the video to see it in action.

Available Options and Accessories

Part and Media Separator

Make the media and part separation process simple by adding a vibratory media separator. Rotate the barrels to dump media and parts onto the vibratory screen and watch as the media and your parts separate.

Processing Table and Sludge Tank

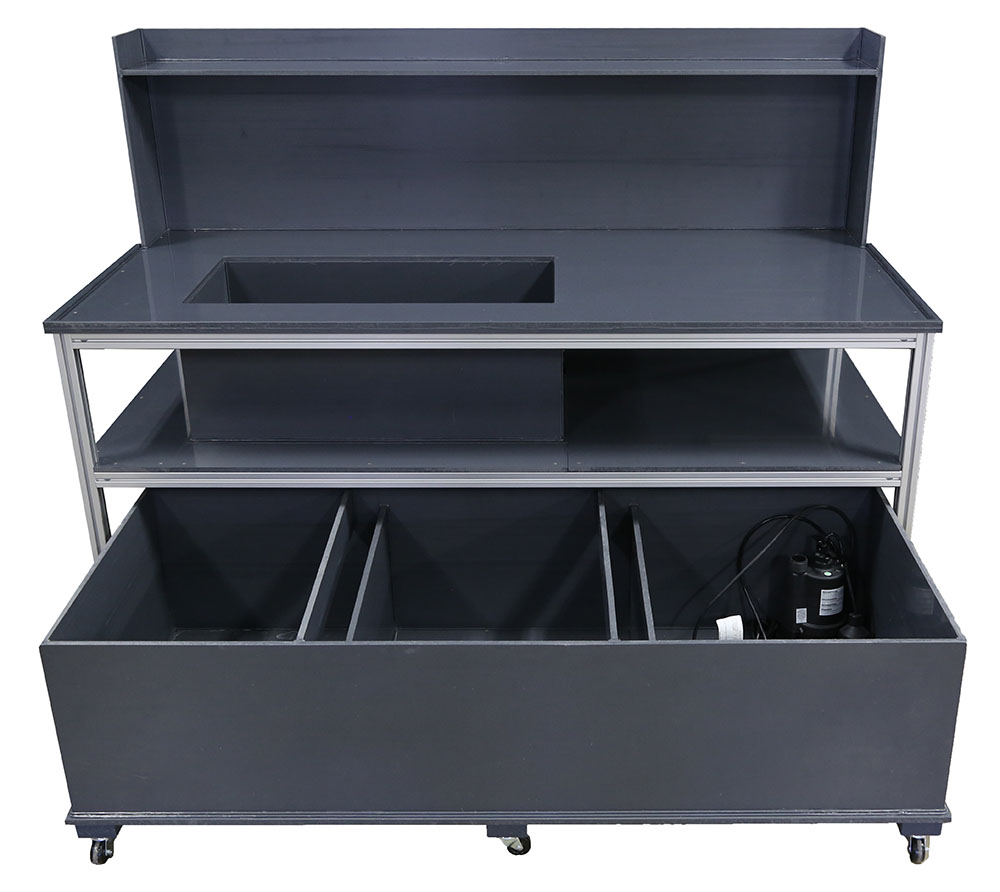

Reduce the mess from the process with MFI’s processing table and sludge tank. Sediment from your tumbling process is collected and easily cleaned out.

PLC Touchscreen Interface

Store processes as recipes in this PLC touchscreen interface. This unit replaces the analog cycle start buttons and allows for better monitoring of machine use and time.

Barrel
Dividers

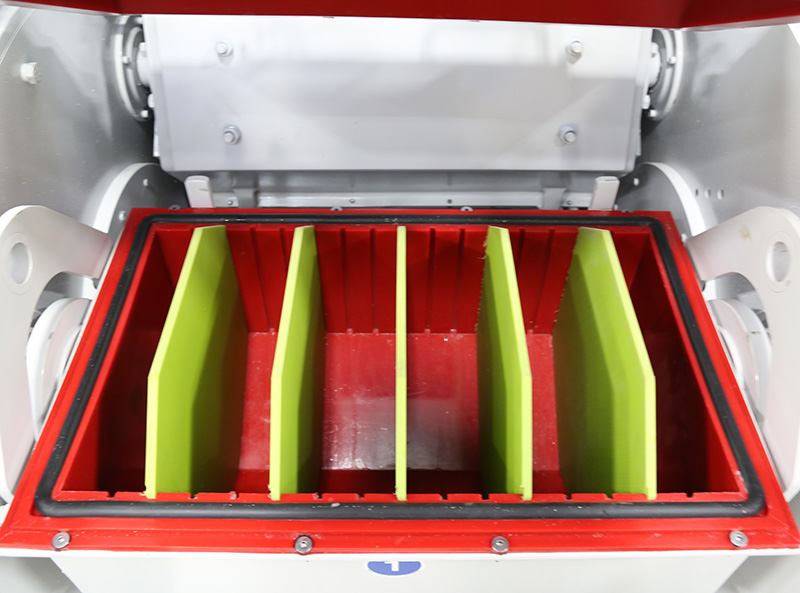

A unique feature with barrel tumbling is the ability to create small separate chambers within each barrel. Dividers help reduce part-on-part impingement.
