PV-5 Vibratory Tub

MFI PV-5

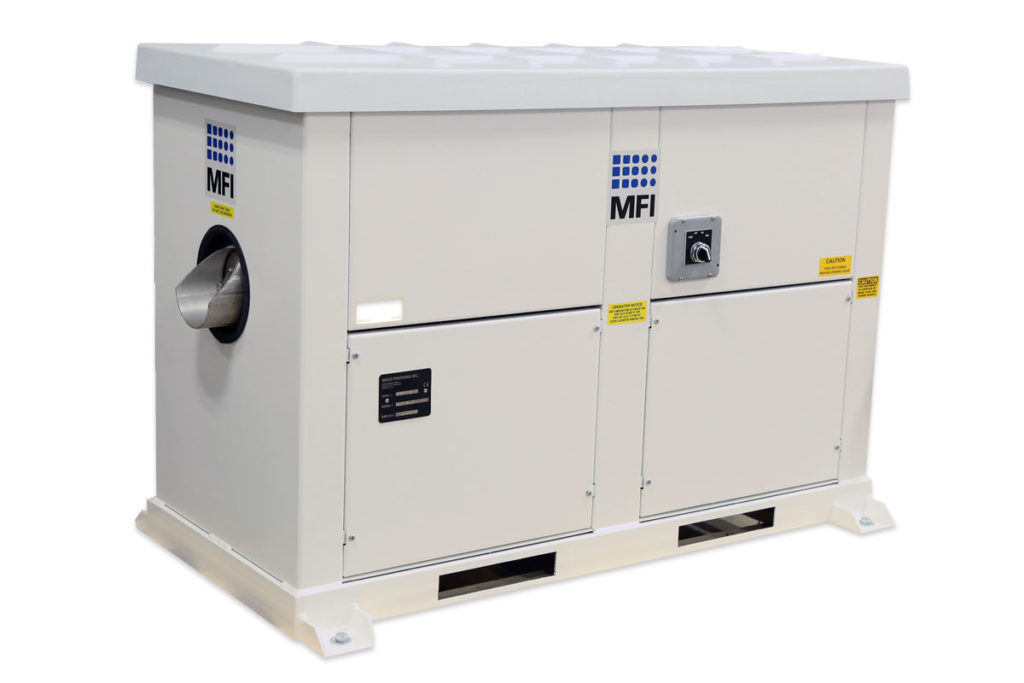

PV-5 Vibratory Finishing Tub

The PV-5 Vibratory Finishing Tub is an economical finishing machine ideal for deburring larger parts at lower volume. The PV-5 has the largest capacity at 5 cubic feet and has double the capacity of the PV-2.5. This compact, self-contained system is designed to provide quiet, cost-effective deburring for a wide variety of applications.

About the PV-5 Vibratory Tub

The PV-5 is stationary and doesn’t have caster wheels like the smaller models in the PV Series. This series of machines typically operates on low voltage, resulting in lower electricity costs.

Built for durability and years of dependable performance, the PV Series machines feature:

  • A fully welded and enamel painted 14-gauge steel base
  • Cast-urethane-ribbed tub linings
  • Sound abatement features (consistently maintaining an operational noise level under 85 dBA)

PV-5 Basic Operation

Utilizing a 2700 rpm vibratory eccentric shaft, the PV Series creates a powerful vibratory action in the polyurethane-lined tub. Inside the tub, abrasive or non-abrasive media rolls in a large mass, providing a gentle yet thorough finish on your parts. Simply drop your unfinished parts into the mass and let the PV Series Vibratory Tub do the rest. After a specified amount of time, your parts will be removed and left smoothed and free of sharp edges and burrs.

PV-5 Machine Specs

Processing Tub
  • U shaped configuration
  • 5/8” thick 80 durometer urethane lining
  • 5 cubic foot capacity
  • Drain in the bottom
  • 44.5″ L x 15.25″ W x 15.75″ H
Overall LxWxH  27″ L x 22.5″ W x 35.5″ H
Vibratory Mechanism
  • Rotates at 2700 RPM (Fixed)
  • Balanced, heavy-duty tapered roller bearings support the machined drive shaft and eccentric weight through precision bearing housing
Voltage
  • 110v, Single Phase
Motor
  • 1 HP
Weight
  •  350 lbs
Discharge Door
  • Located at the end of the tub for unloading media
Machine Base
  • Constructed of 14-gauge steel
  • All welded construction
  • Reinforced and gusseted for maximum strength
  • Heavy-duty castor wheels with locking brakes
Sound Cover
  • Heavy-duty plastic
  • Lined with acoustic foam to deaden sound
Internal Pump
  • Compound pump for recirculating water
  • Wired internally
Drive
  • Constant Speed Standard
  • Variable Speed Upgrade Available
