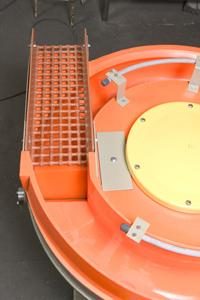

LR-Series
Long-Radius Bowl Vibratory Finishing Machines
Almco’s “LR” Series Of Round Bowl Vibratory Tubs Are Well Suited For Both Thru-Feed And Batch Processing Of Parts. The “Lr” Machines Are Capable Of Using A Wide Variety Of Medias And Compounds To Attain The Desired Finish.
Features
- Once Around And Out Parts Flow Or Batch Processing
- Multiple Sizes To Fit Your Application
- Natural Contour Molded Urethane Lined Tub
- Available In 230 Or 460v / 3ph / 60hz (Other Voltages Upon Request)
- Wet Or Dry Process Capabilities
- Variable Amplitude (Gentle Or Aggressive)
- Variable Progression
- Multiple Replaceable Drain Plates
- Compact Design For Minimal Floor Space At Low Working Heights
Optional Items
- Variable Frequency
- Sound Enclosure
- Many Screen Sizes And Styles
- Automatic Lubrication
| Model | Working Capacity Cu Ft. | Channel Cross-Section | Vibrations Per Min. | Drive Motor HP | Overall Dimensions Inches | Shipping Weight Lbs. |
| OR-5VLR | 4.2 | 8.25″ | 1500 | 3 | 54 x 54 x 36 | 2850 |
| OR-9VLR | 7.6 | 10″ | 1400 | 5 | 80 x 66 x 44 | 3925 |
| OR16-VLR | 15.2 | 12.5″ | 1400 | 10 | 96 x 84 x 50 | 5300 |
| OR-25VLR | 25.7 | 15″ | 1240 | 20 | 98 x 98 x 66 | 7500 |
| OR-40VLR | 38.8 | 17″ | 1240 | 25 | 114 x 114 x 78 | 9500 |
