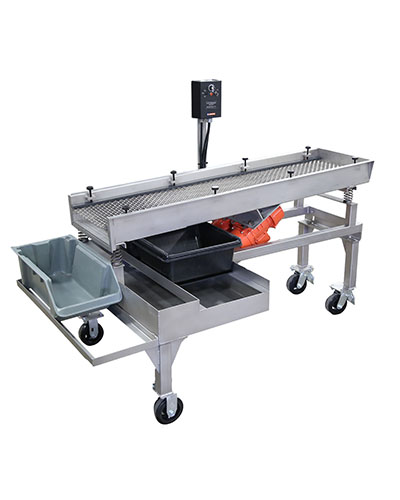

Free Standing Media & Part Separator

MFI’s PSA-1660 Free-Standing Media Separator is a portable and efficient solution for separating media and parts. Whether you use centrifugal disc machines, vibratory bowls or tubs, or MFI’s compact HZ-Series models like the HZ-12 and HZ-40, the MFI Media and Part Separator is the perfect addition to separate parts from media, or for media classification.

About the Free-Standing Media & Part Separator

The two variable speed vibration motors mounted beneath the screen deck create a vibration that allows media to be gently sifted away from finished parts. This is especially helpful where parts are small and would otherwise take a long time to sort from media. The removable screens, available in 1/4-inch increments, allow the user to switch out the screen sizes in a matter of seconds. Customers can purchase additional screens and have a choice between stainless or coated mesh.

Two black media draining catch bins are included as well as one gray catch bin for finished parts.

Free-Standing Media & Part Separator Basic Operation

The two variable speed vibration motors mounted beneath the screen deck create a vibration that allows media to be gently sifted away from finished parts. Once a finishing job is complete, simply pour barrels from MFI’s compact finishing machines (HZ-12 and HZ-40) The operator can simply dump full barrel or buckets of finished parts and media into the separator and watch as the media falls through the screen, leaving finished parts on top. The heavy-duty wheels and frame stand allow the operator to move the separator to the next machine or into a storage area when not in use.

Free-Standing Media & Part Separator Specs

Power
  • 230v 3 Phase, 60 Hertz
  • Converted to 120v Single Phase
Drive
  • Variable Frequency Drive
  • Allows for adjustable vibration
Construction
  • All stainless steel construction
  • Bead blasted
  • All welded construction
Wheels
  • Heavy duty castors
  • Two braking castors
Feed Height
  • 33” to 36”
Discharge Height
  • 29.5”
Overall Footprint
  • 36” wide x 72” long
Shipping Weight
  • 500 Lbs.
Screen Dimensions
  • 15″ x 60″
Screen Openings
  • ¼” Increments (Custom Available)
Includes
  • Two (2) Black media draining catch bins
  • One (1) Gray Catch Bin
Additional Screens
  • One Stainless wire mesh screen included in list price
  • Additional Stainless Mesh Screen-$400.00
  • Additional Coated Mesh Screen- $600.00
  • Custom screens also available
